CLICK Pro Starlink Roof Mount

How To Install The CLICK Pro Mount CLICK Pro Starlink Roof Mount.

Guide to installing the CLICK Pro
Guide to installing the CLICK Pro

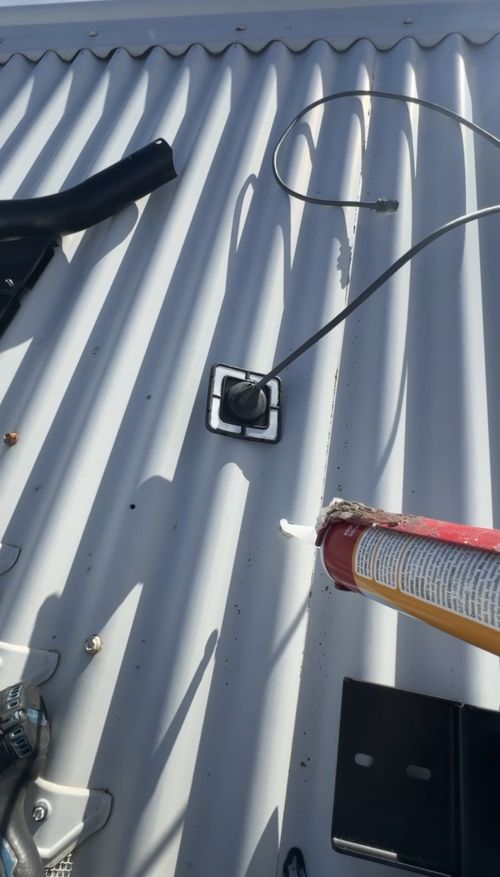

Step 1. Locate mounting holes (use ridges only)
Step 1. Locate mounting holes (use ridges only)

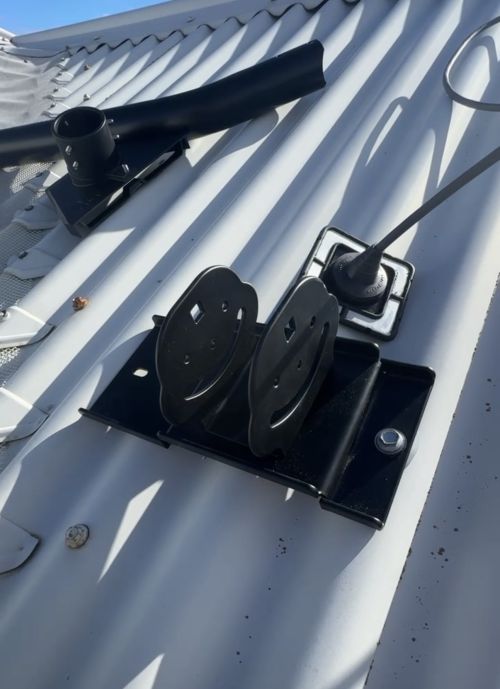

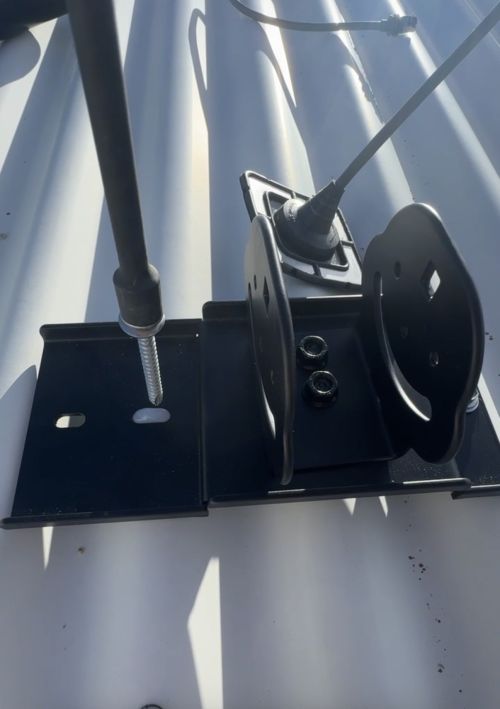

Step 2. Attach base plate with pole holder attached
Step 2. Attach base plate with pole holder attached

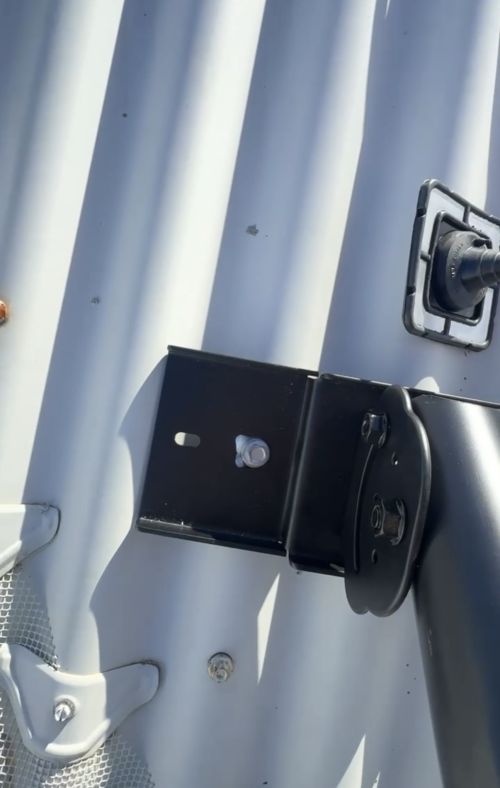

Step 3. Align pole holder until vertical (may require a spirit level to position correctly)
Step 3. Align pole holder until vertical (may require a spirit level to position correctly)

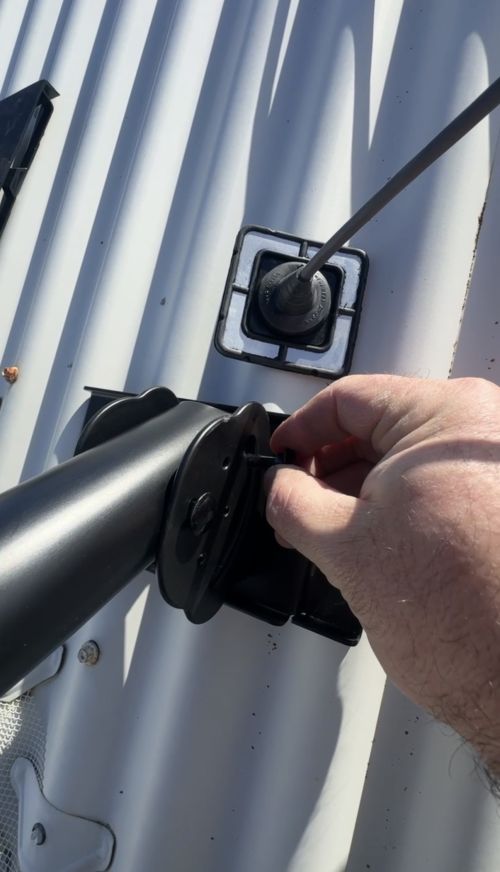

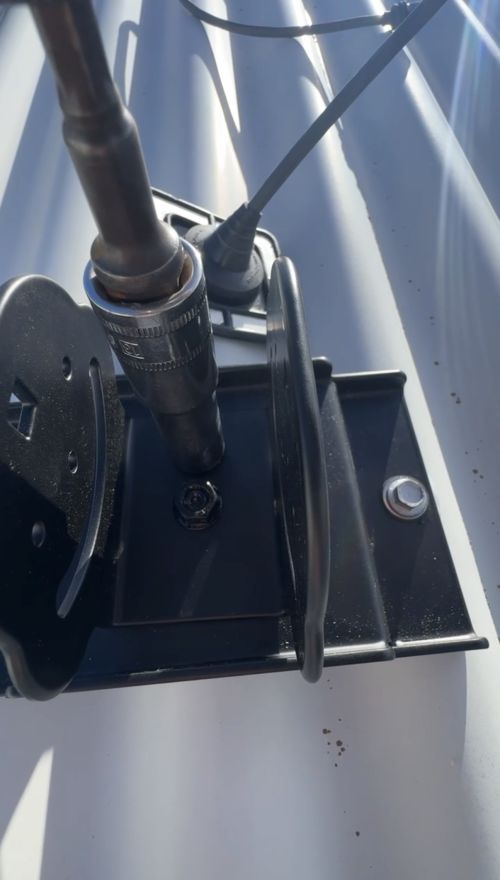

Step 4. Tighten pole holder nuts to stop free twisting
Step 4. Tighten pole holder nuts to stop free twisting
Step 5. Attach pole to pole holder with bolts provided
Step 5. Attach pole to pole holder with bolts provided
Step 6. Use nuts to attach bolts but only finger tight for now
Step 6. Use nuts to attach bolts but only finger tight for now

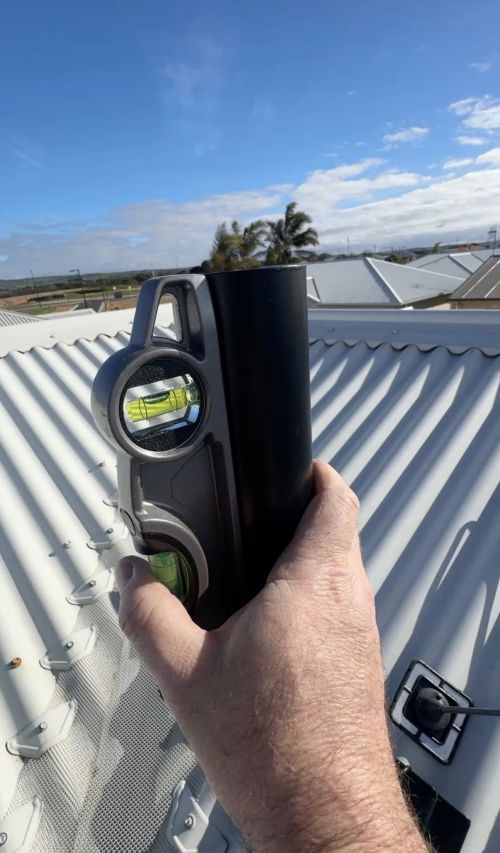

Step 7. Using a level position the pole to be vertically level
Step 7. Using a level position the pole to be vertically level

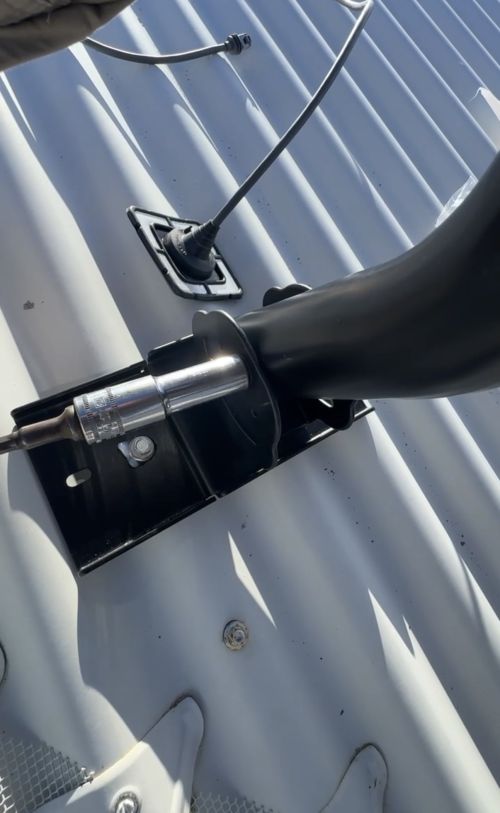

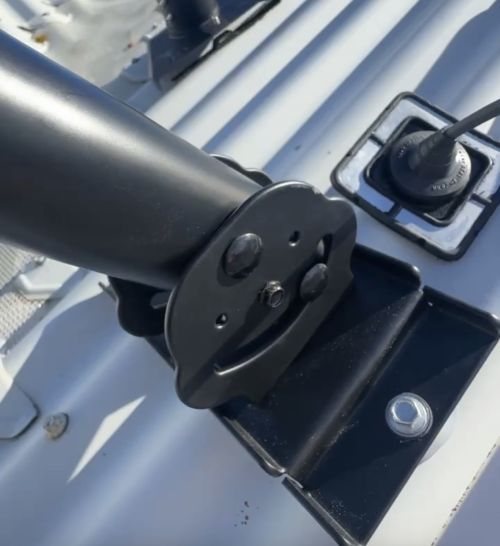

Step 8. Tighten nuts to lock in pole position
Step 8. Tighten nuts to lock in pole position
Step 9. Check level and adjust if needed
Step 9. Check level and adjust if needed

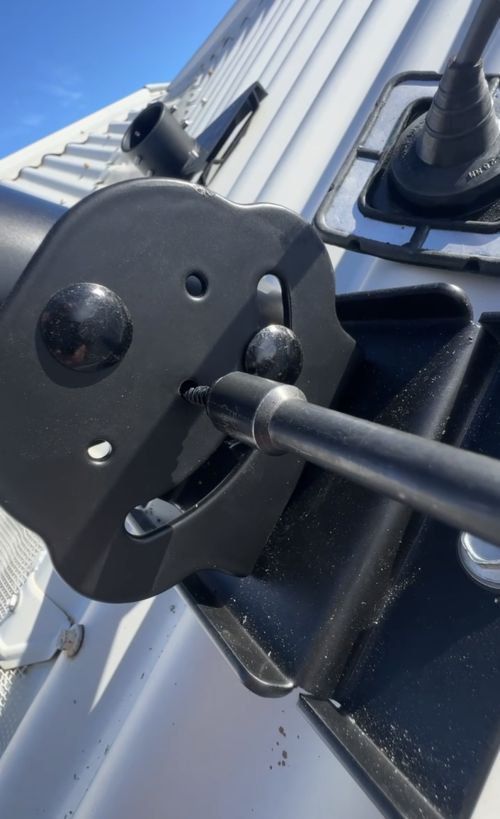

Step 10. Using small teak screw lock the pole in place
Step 10. Using small teak screw lock the pole in place

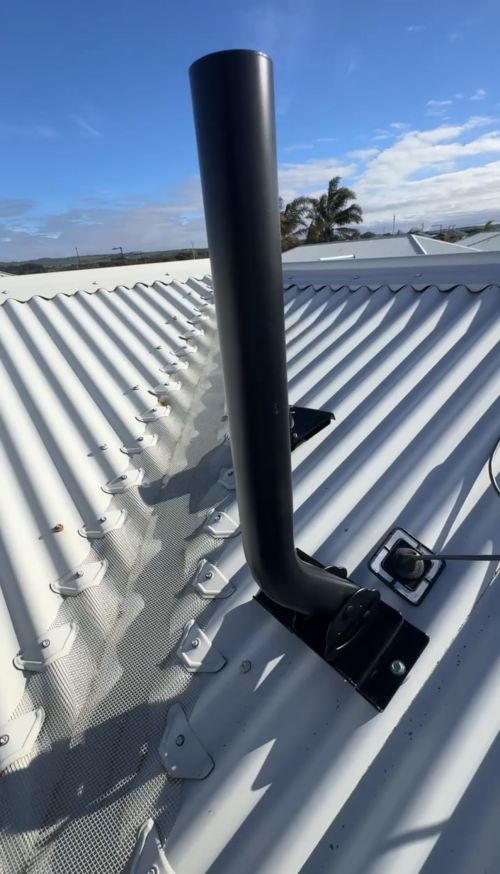

Step 11. Final level check
Step 11. Final level check

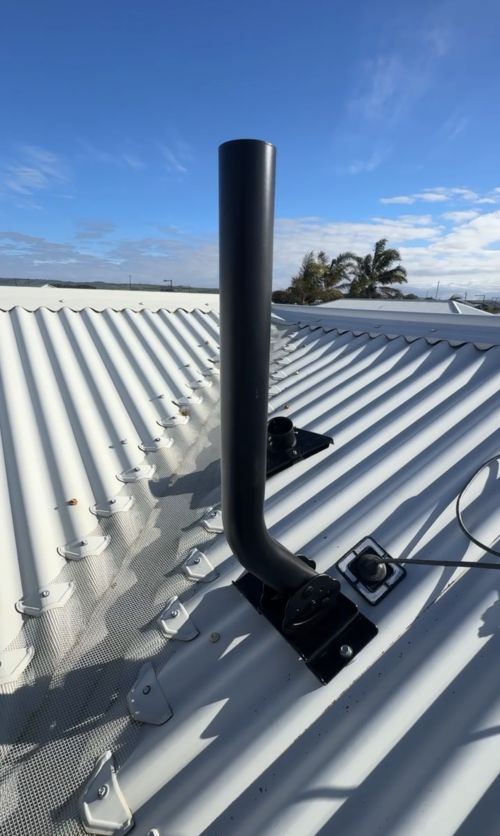

Step 12. Run cable up through main pole
Step 12. Run cable up through main pole

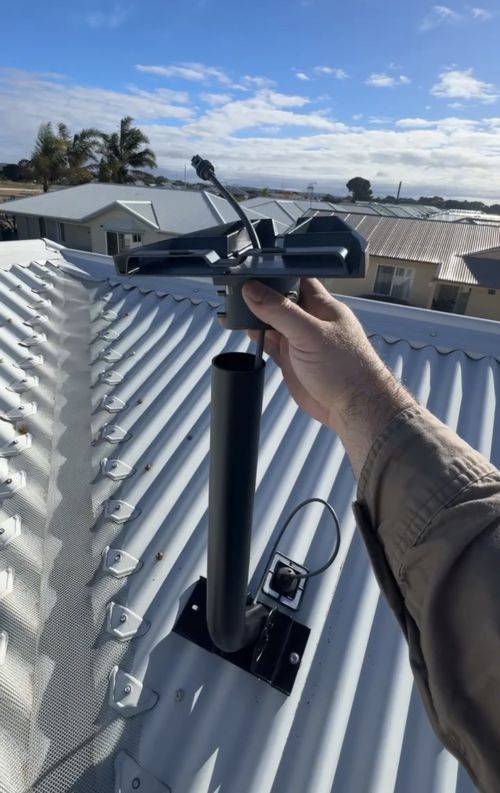

Step 13. Thread cable though adapter and place over pole
Step 13. Thread cable though adapter and place over pole
Step 14. Once adapter is aligned, tighten grub screws to lock in place
Step 14. Once adapter is aligned, tighten grub screws to lock in place

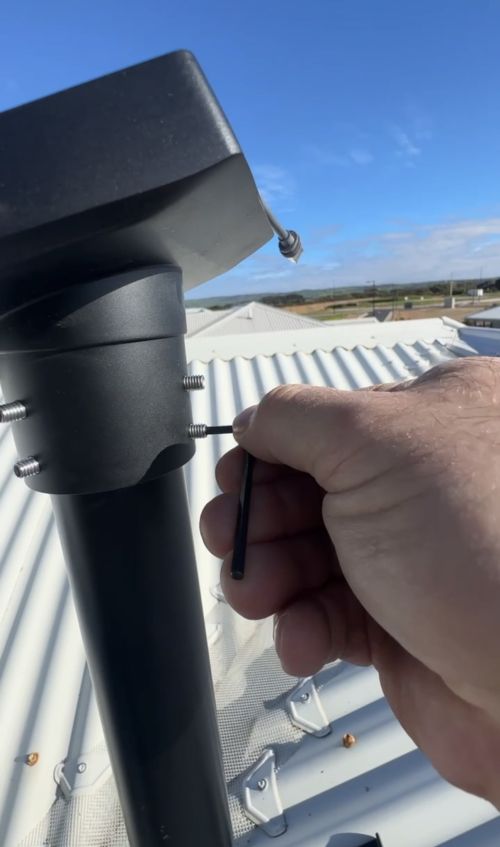

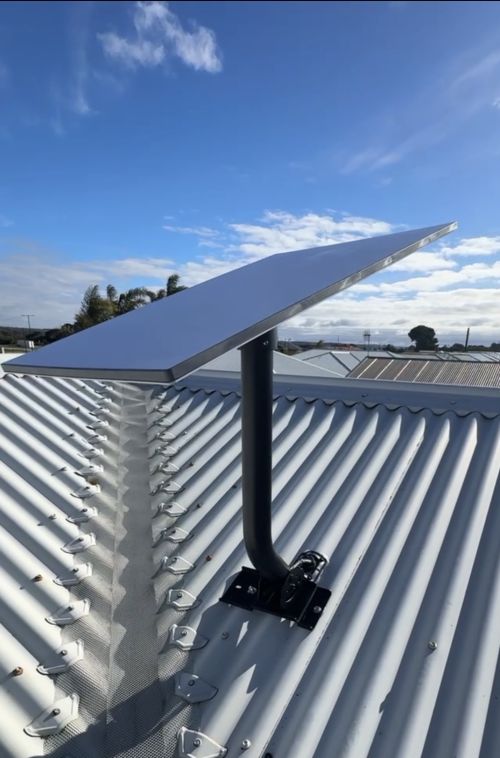

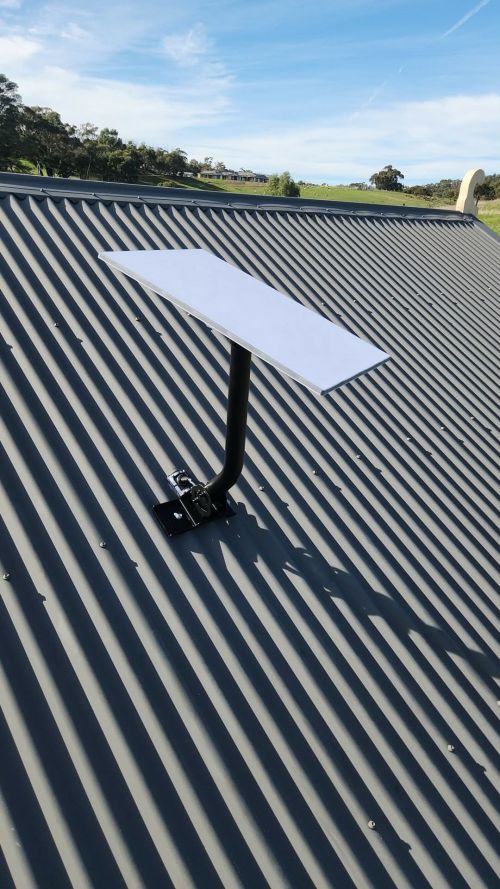

Step 15. Attach cable to Starlink dish, attach to adapter and then tighten wind flex eliminator grub screws.
Step 15. Attach cable to Starlink dish, attach to adapter and then tighten wind flex eliminator grub screws.
